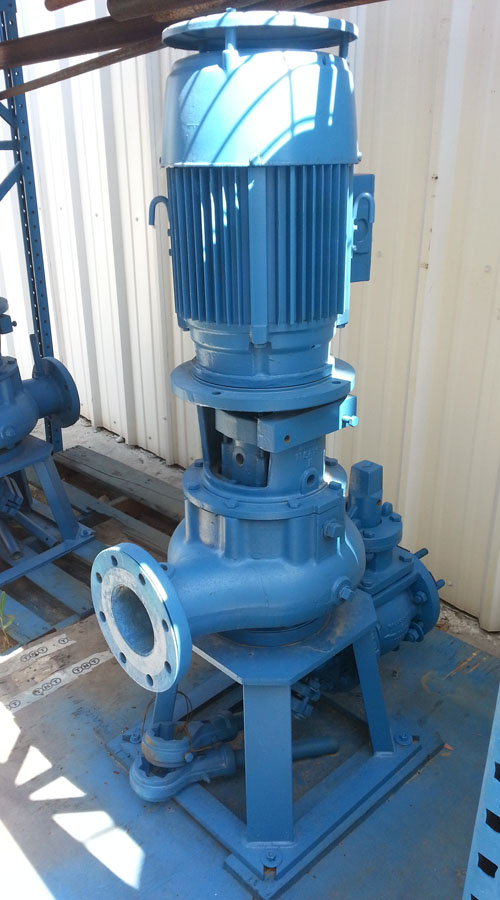

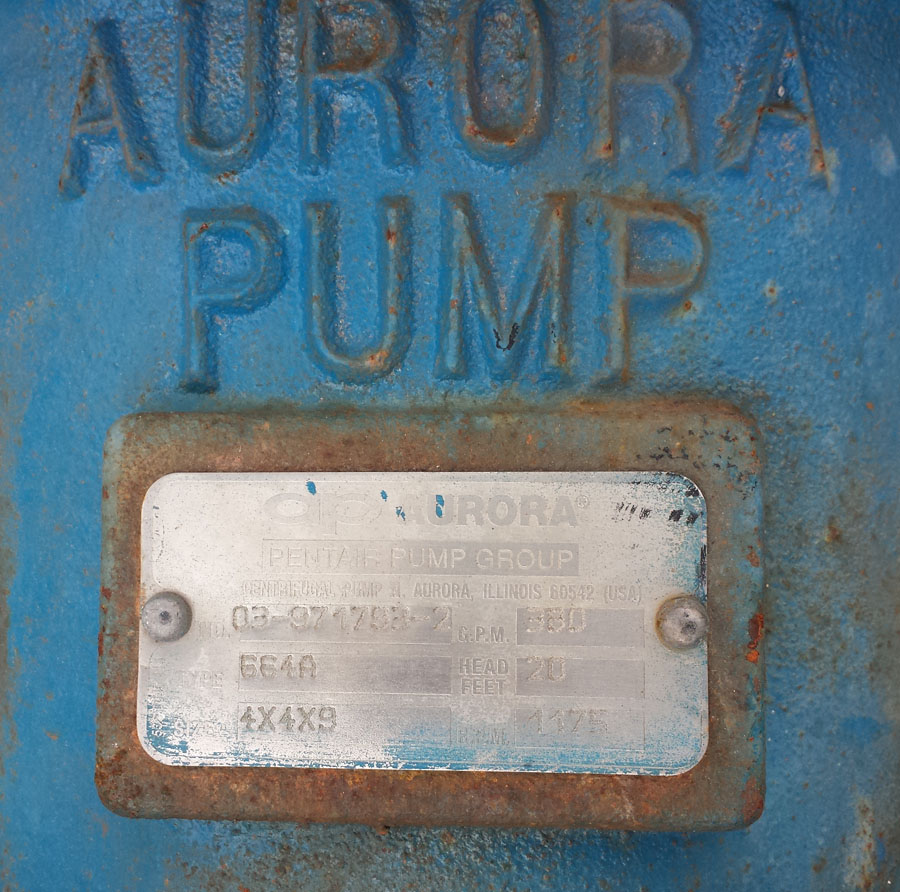

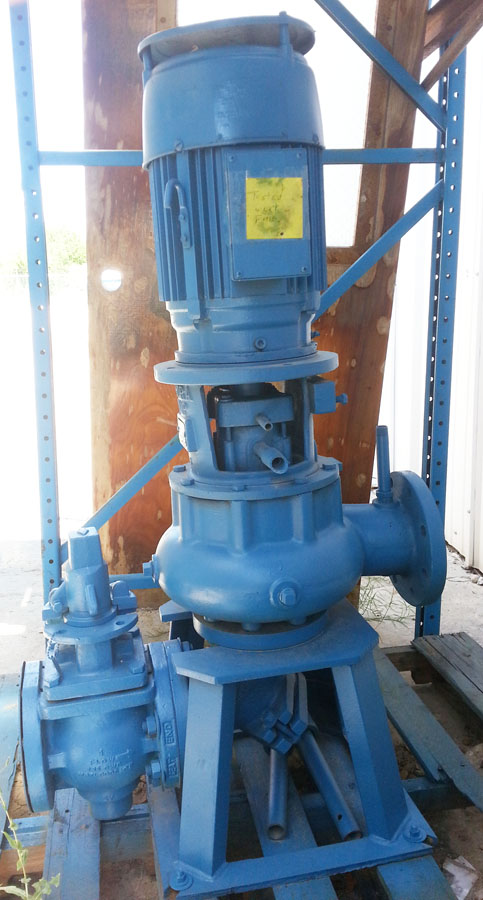

Marca: Aurora Pump/Pentair Pump Group

Descripcion de la Bomba: 380 galones por minuto
Tipo 664A / 1175 RP / 20 head feet
Dimensiones: 4" x 4" x 9"

Descripcion del Motor: US Electric Motor
Marco 215TCVZ, Tipo TV9, Recinto TE
5HP, 30 Cont. Duty, Insol. Clase F,
230/460 VAC, 60 Hz, S.F. 1.0 Code G
15.7/7.9 Amps, NEMA EFF 82.5
Peso: 200 lbs.

Las dos bombas estan limpias, pintadas, y probadas corriendo en buena condicion.

LAB: San Antonio, TX 78225, USA

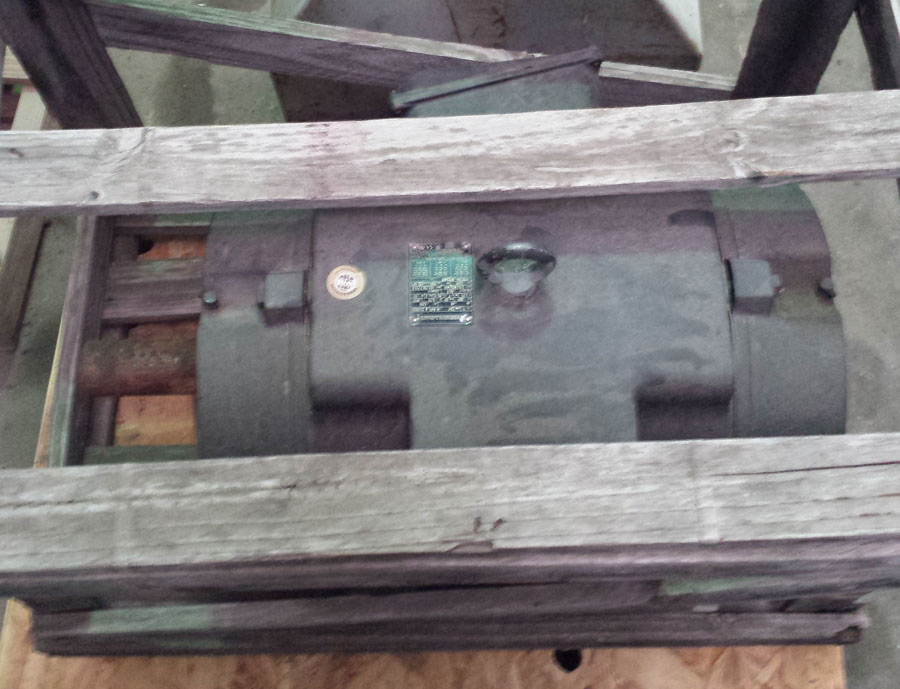

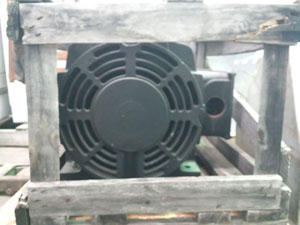

Marca: Manufacturado por WEG para Ingersoll-Rand
Parte#22178362
Marco - 324T / RPM 1780 / 30 / 60Hz
Recinto- ODP Type DP P.F. 0.79 IP23
S.F. 1015 Insul Class F Code J,
NEMA Nom EFF 93.0, 3/4 Load EFF
Volts: 230 / 400 / 460, Amps: 102 / 58.7 / 51.0
Max am 50 deg celsius, Alt 1000 m.a.s.
12SET06, BY23466
Peso: 526 lbs

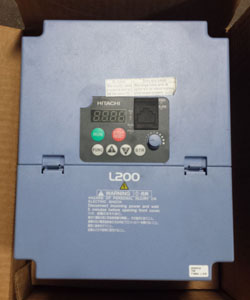

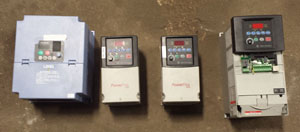

• Hitachi Inverter - Model L200-055HFU2
• KW/(HP) 5.5/(7.5)
• Input: 50/60 Hz 30
• 380-480VAC 16.5A
• Output: .5-400 Hz 30 13.0A
• PDF with more info

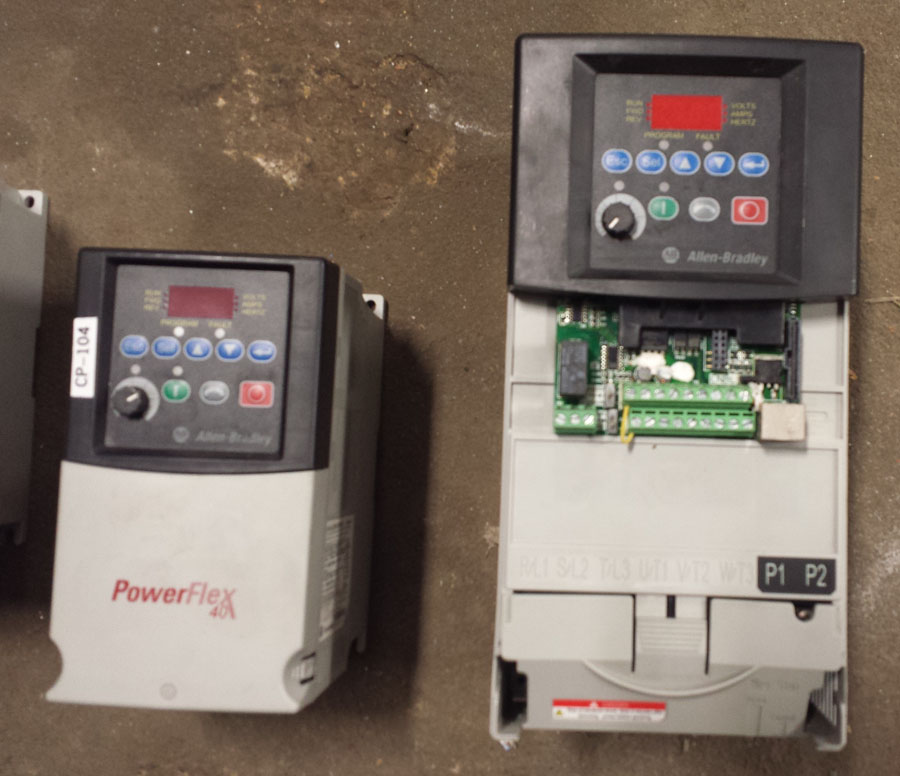

• Allen-Bradley Power Flex 40 (Qty: 2 Available)
• Cat#22B-D010N104 Series A
• Motor Rating 4.0 Kw/5.0 HP
• Input: 380-480 VAC/30/48-63 Hz
• Voltage Range 342-528 VAV 13.0 Amps
• Output: 0 - 460 VAV/30/0-400 Hz
• Continuous Amps 10.5
• 60 Sec. Overload Amps 15.75

• Allen-Bradley
• CAT# 22B-d017N104 Series A
• Motor Rating: 7.5 kw / 10HP
• Input: 380-480 VAC/Range 342-528 VAC/30/48-63Hz/18.4A
• Output: Range: 0-460 VAC/30/0-400 Hz/ Continuous 17.0 A-25.5A 60 sec.

Stearns Brand Brake Unit

• Model: 1-087-011-05-DLF
• Torque: 10 lb per ft

• Mounting: Noritz
• Amps: 11
• Volts: 460
• Hertz: 60



• Model: SM2A30PRLQD

• Range: 200 m

• Input: 24 to 240 V ac, 50 60 Hz

• 500 mA max. load

• Output: SPST Solid-state - Light Operate
