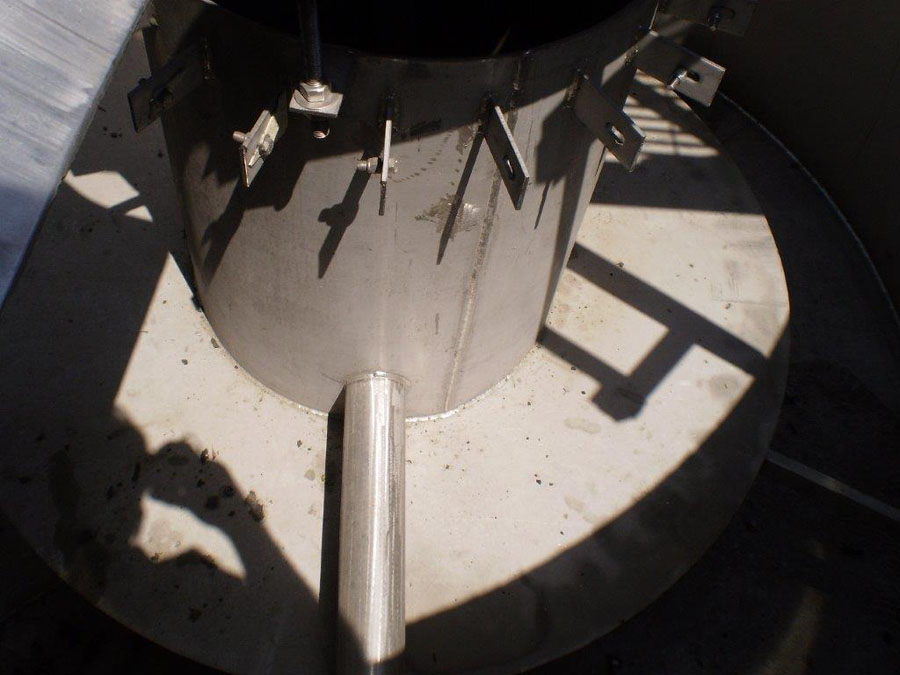

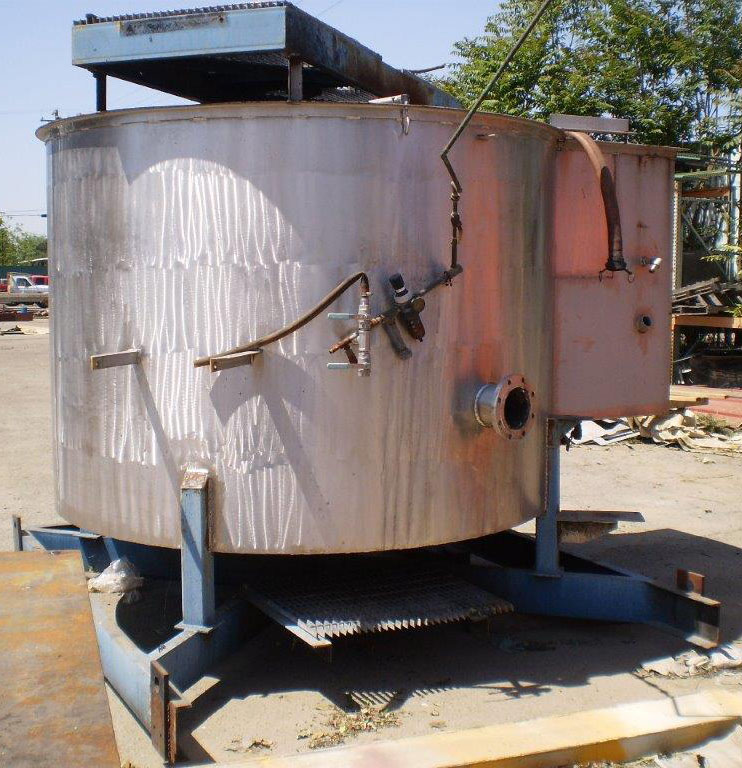

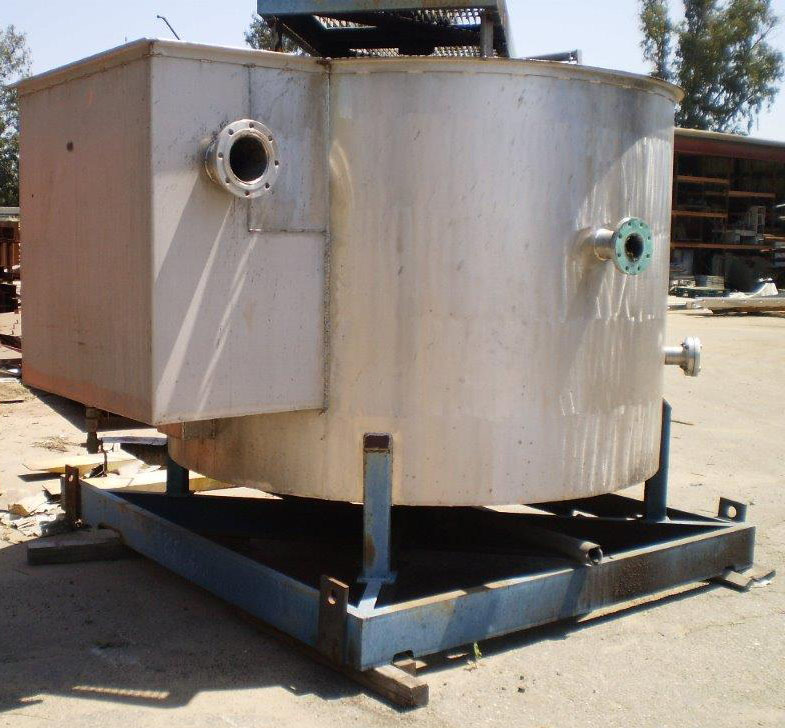

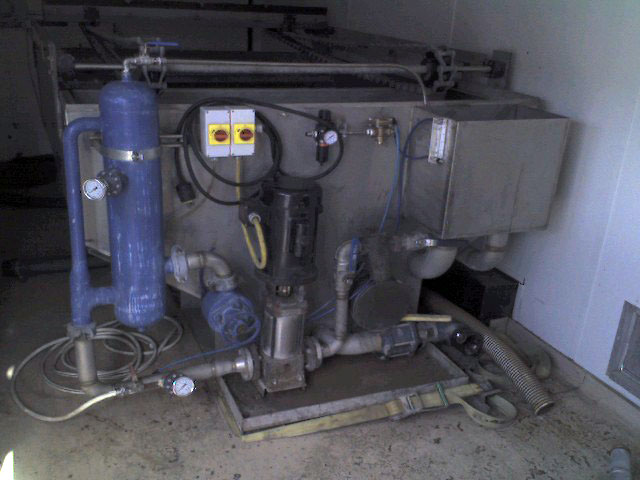

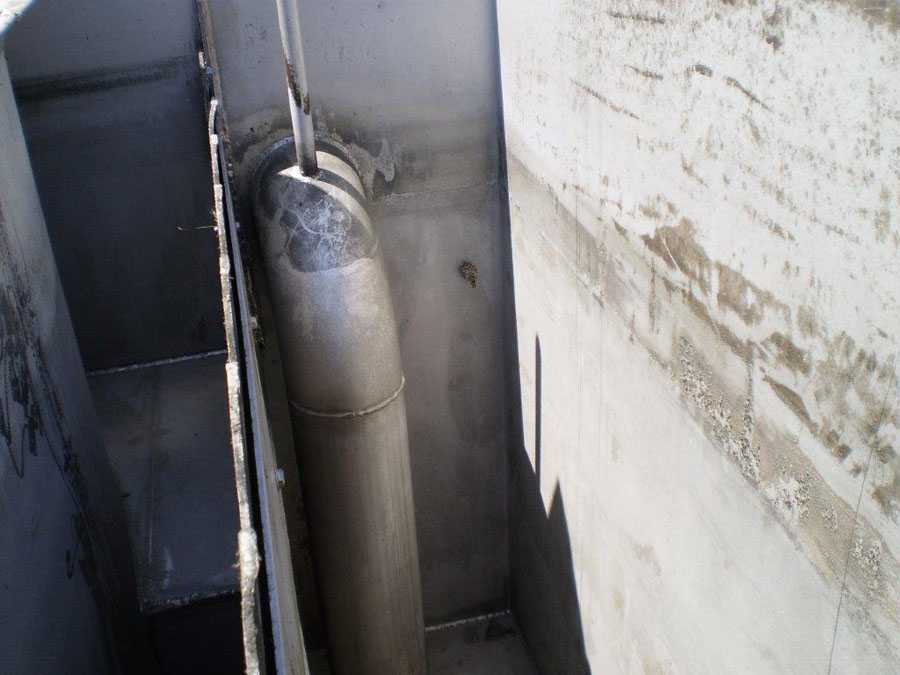

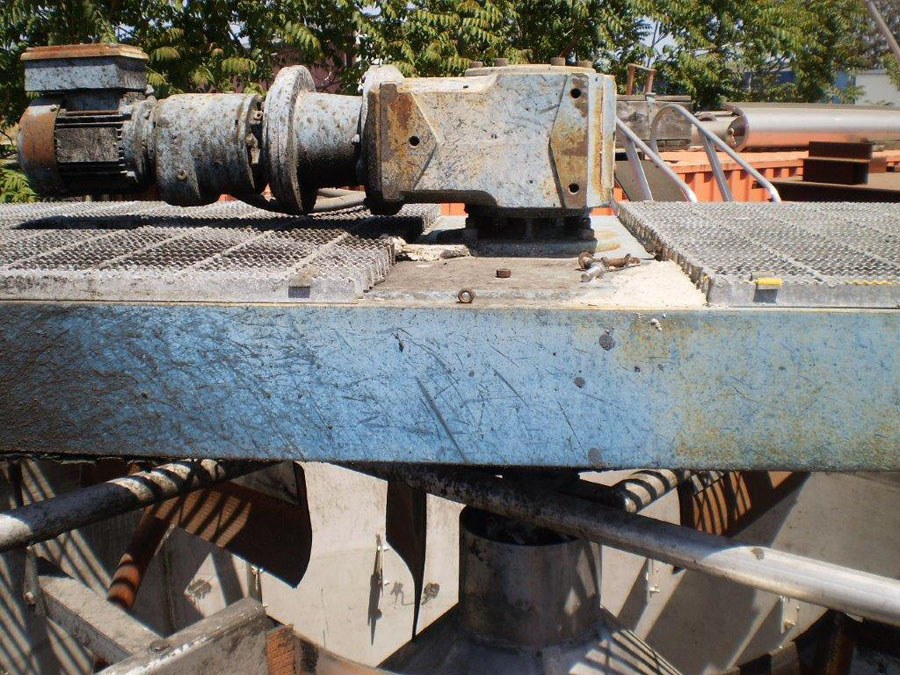

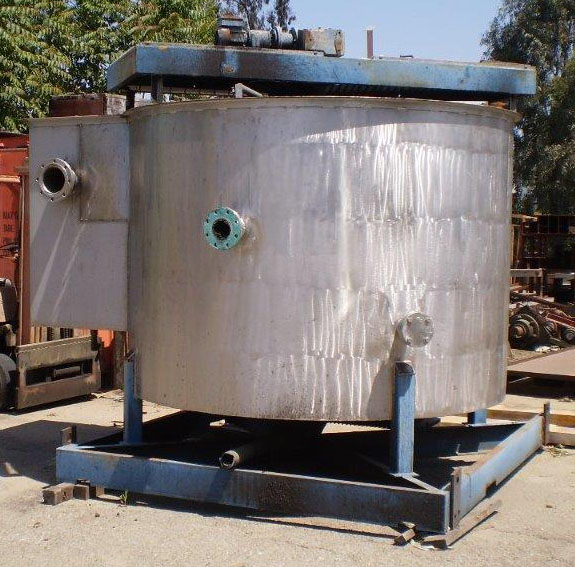

DAF DRAWING

Cantidad del afluente de flujo:
80 GPM

Número del modelo reciclado:
ESI J-580

Flujo total a través de la célula DAF:
77.60 GPM

Bomba de la presurización:
80psi 80 GPM

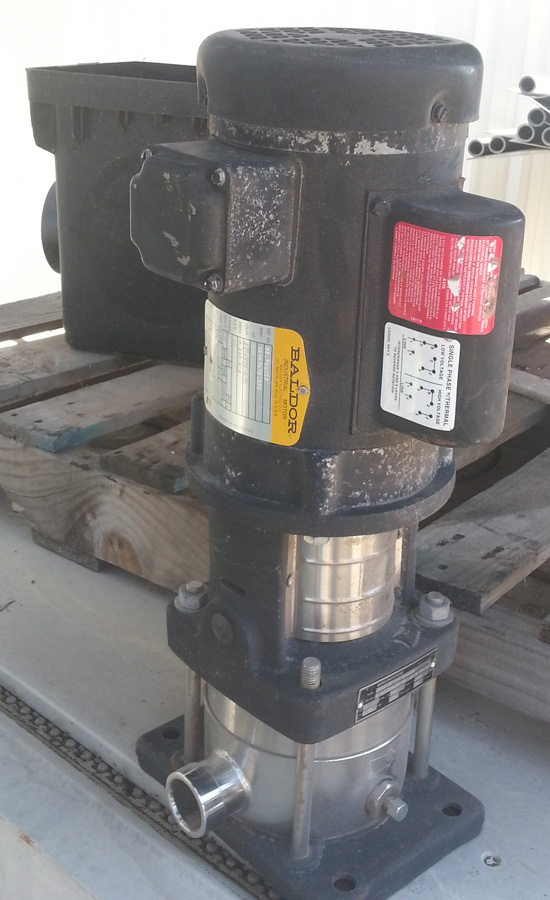

Grundfos Brand Vertical Transfer Pump

• Tipo: CRN2-30 U-P-G-AUUE
• Modelo: D 4D 137063E P1 0118 US138
• Q: 11 GPM
• H: 106 ft
• n: 3450 RP<
• P: 0.75 HP
• 230 PSI max.
• 250 grados F max. precio de venta $200.00

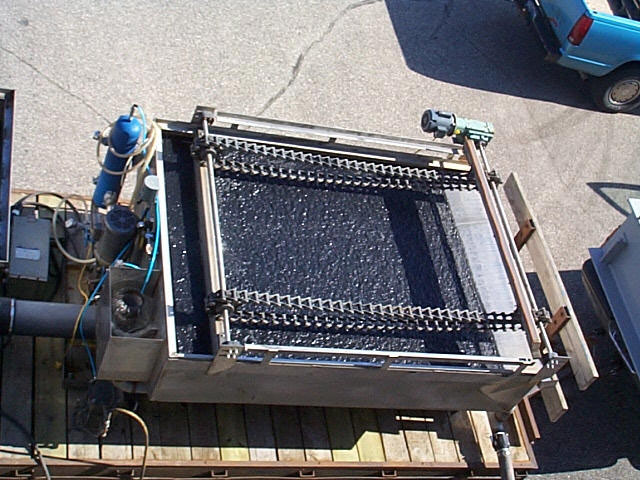

50 GPM DAF - Precio $39,000.00

Rrental: $3,500.00 por mes.. 2 meses minimo de renta,
mas consto de flete de nuestra bodega.

DAF PRINT

Precio: $93,000.00

Hay mas lavadores a $1.50 por CFM

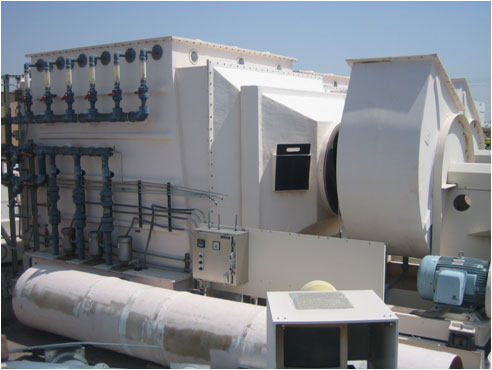

NOTES:

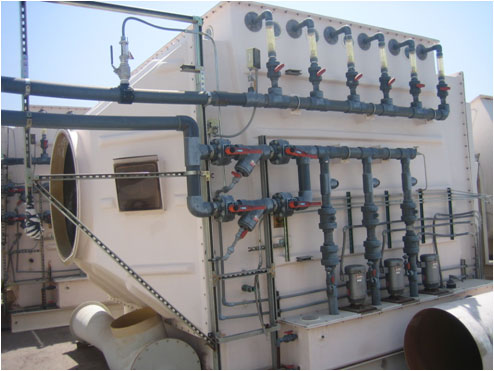

FIBERGLASS HAS 3% ANTIMONY TRIOXIDE ADDED FOR FIRE RETARDATION. MEETS CLASS 1 FLAME SPREAD RATING OF 25 OR LESS. THE SCRUBBER AND BLOWER ARE MOUNTED ON A STEEL FRAME. THE OVERALL WIDTH IS 12' 7 " WHICH MAKES IT AN OVERSIZED LOAD.

• ASSET # HFS-010
• LOCASION A-10
• MANUFACTURA VIRON
• CFM 70000 @ 3"STATIC PRESSURE
• MODELO/ SERIE NO VHS-108120-FRP-40-120-S-3-H, S/N 11189
• AñO 11/28/1994
• CONSTRUCCION TIPO VER4300FR FRP
• RESTREGADOR INLET DIM 54" DIA
• RESTREGADOR OUTLET DIM 51" DIA
• MEDIDA DE PLATAFORMA 120" LARGO X 108" ANCHO X 120' DEEP
• PACKING TYPE & SIZE 3.5 " HIGH EFFICIENCY JAEGER
• SCRUBBER OVERALL DIM 252" LONG X152"
• IDE X 160" HIGH
• NO. OF PUMPS 3


• PUMP TYPE GUSHER MODEL 11031-NS-B
• PUMP HP 5 HP EA
• PUMP FLOW/ MAX HEAD 250 GPM/ 130FT
• PUMP POWER REQ. 230/460 VAC, 3 PH, 60 HZ
• BLOWER INLET 54" DIA
• BLOWER OUTLET 40" X 50"
• BLOWER WHEEL DIA 66"
• BLOWER MOTOR HP 100
• BLOWER POWER REQ. 230/460 VAC, 238/119 AMP, 3 PH, 60 HZ
• BLOWER OVERALL DIM 336" LONG X 152" WIDE X 160" HIGH

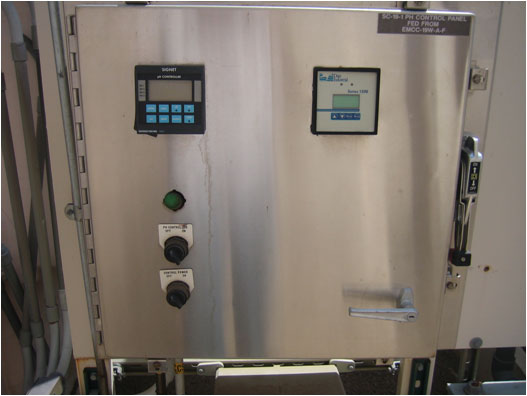

• PH MONITOR DIGITAL SIGNET MODEL 5700
• FLOW MONITOR DIGITAL DATA
• NDUSTRIAL MODEL 1500
• TOTAL OVERALL DIM 250" LONG X 142" WIDE X 159" HIGH

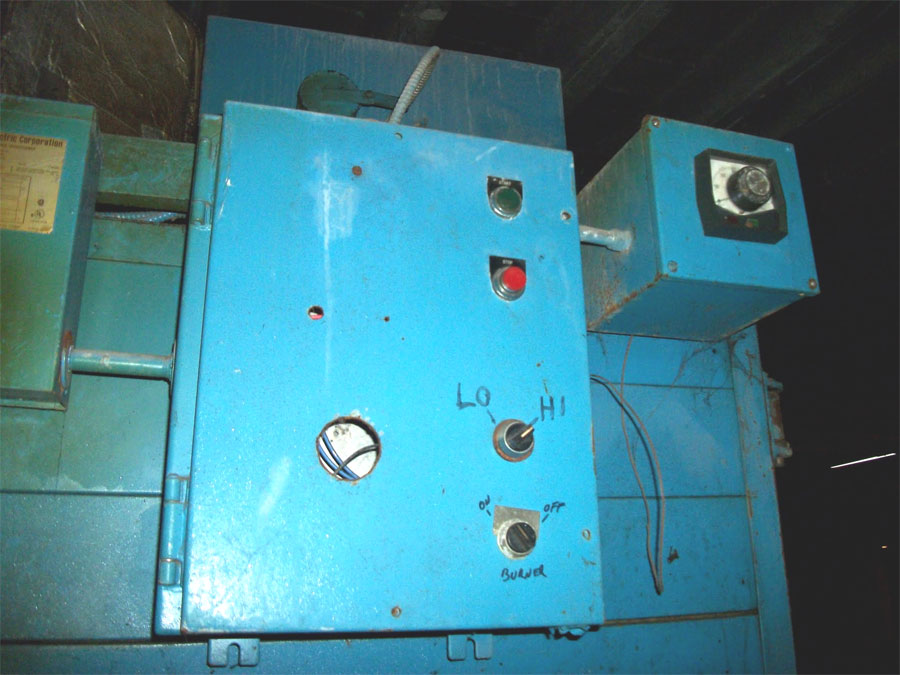

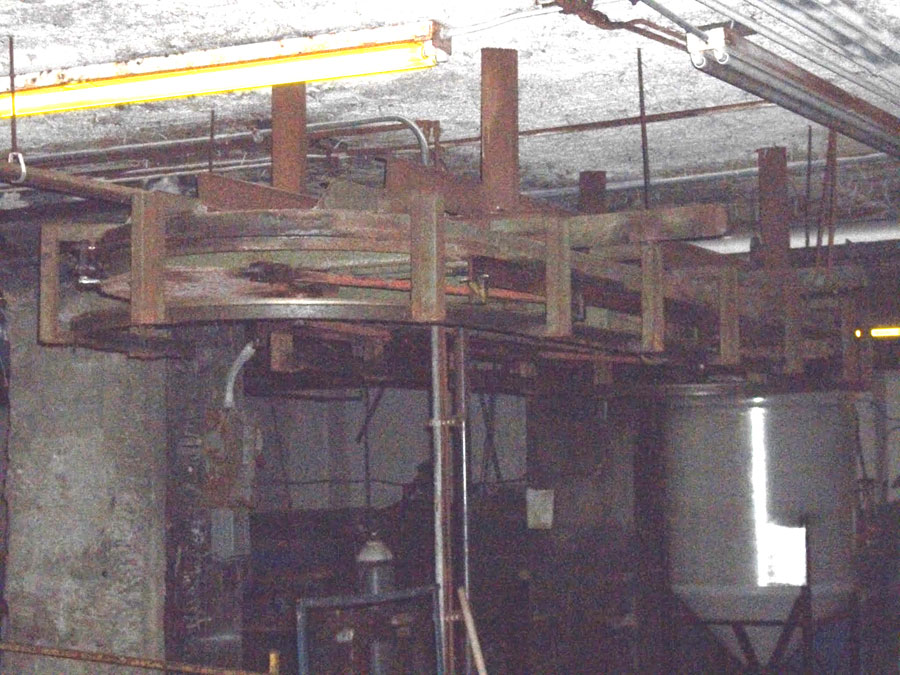

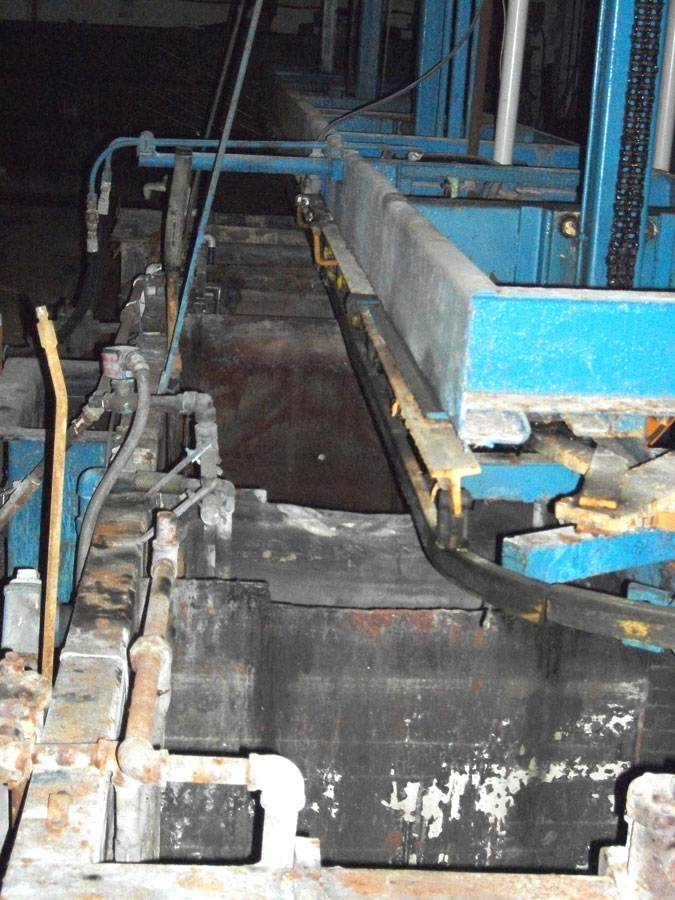

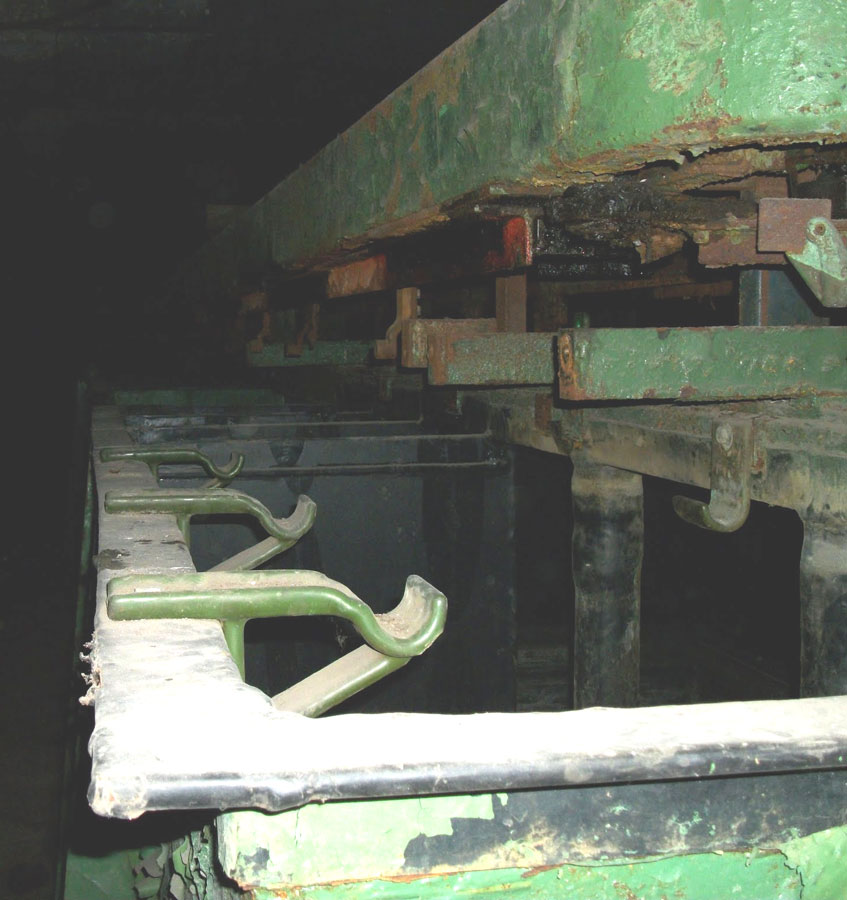

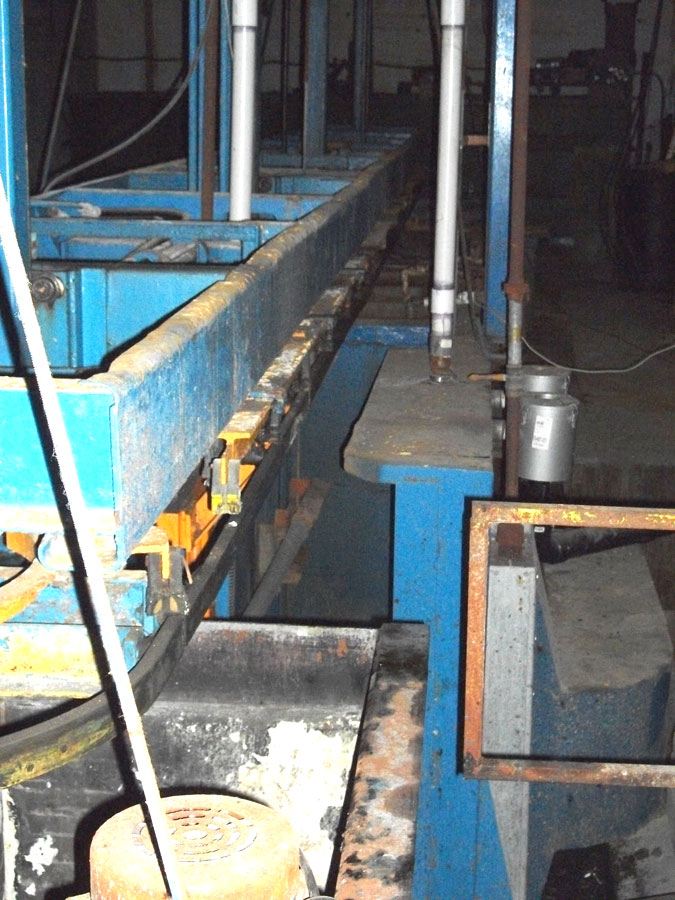

New batch of plating equipment

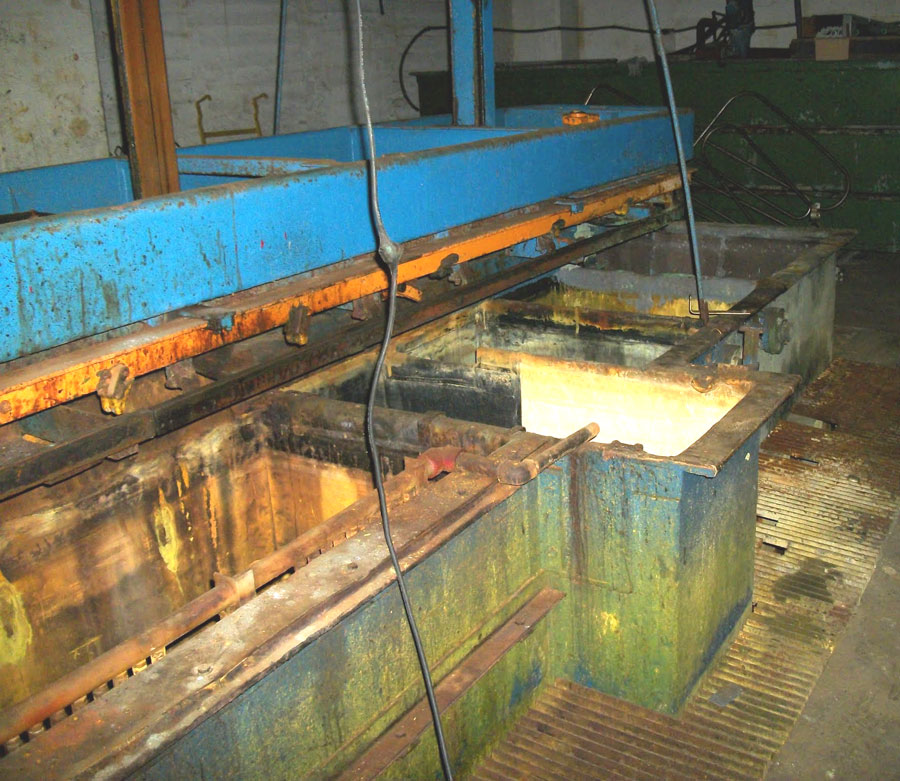

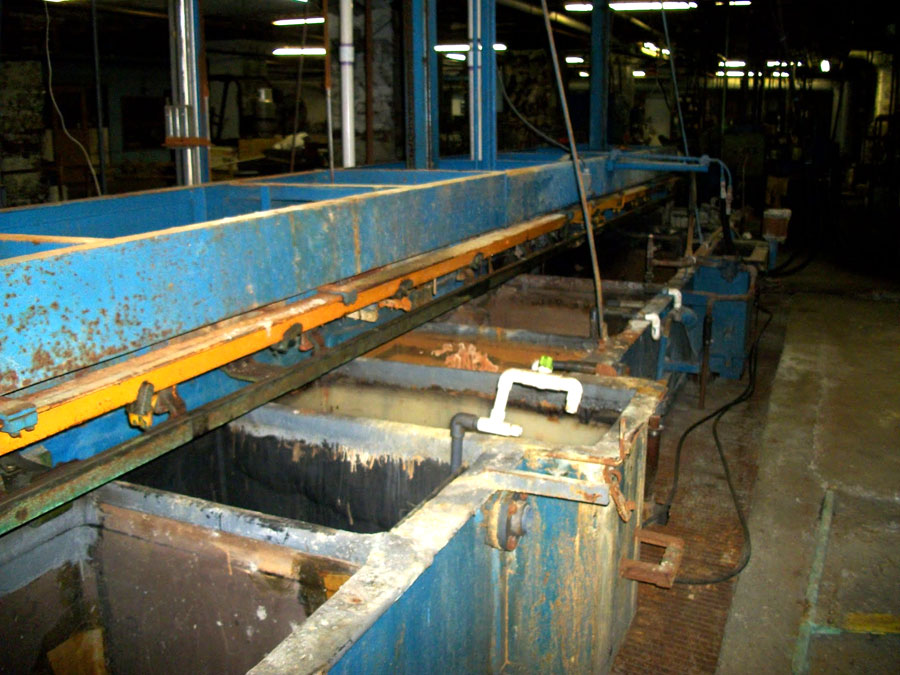

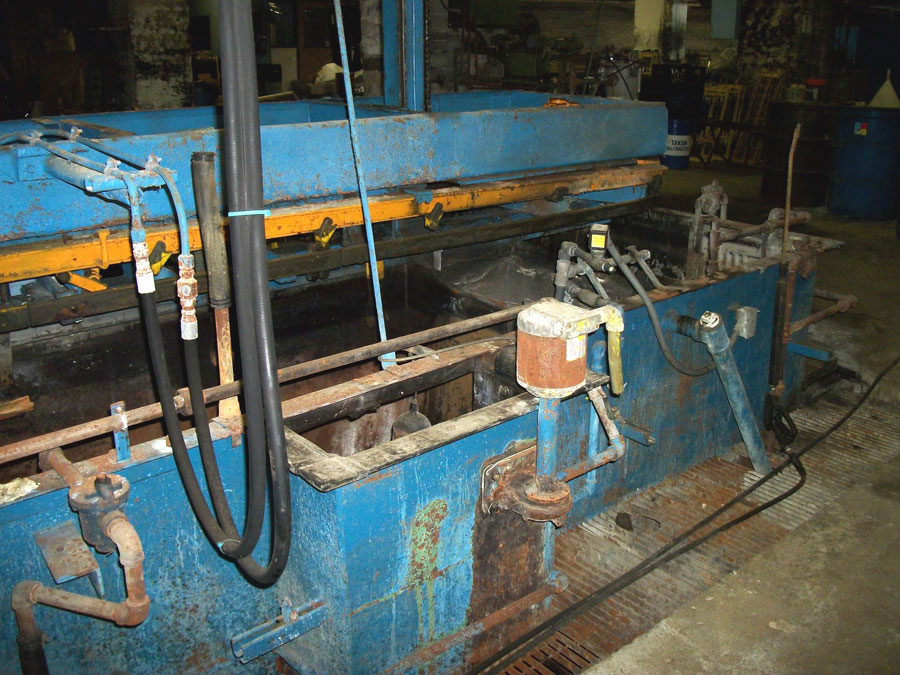

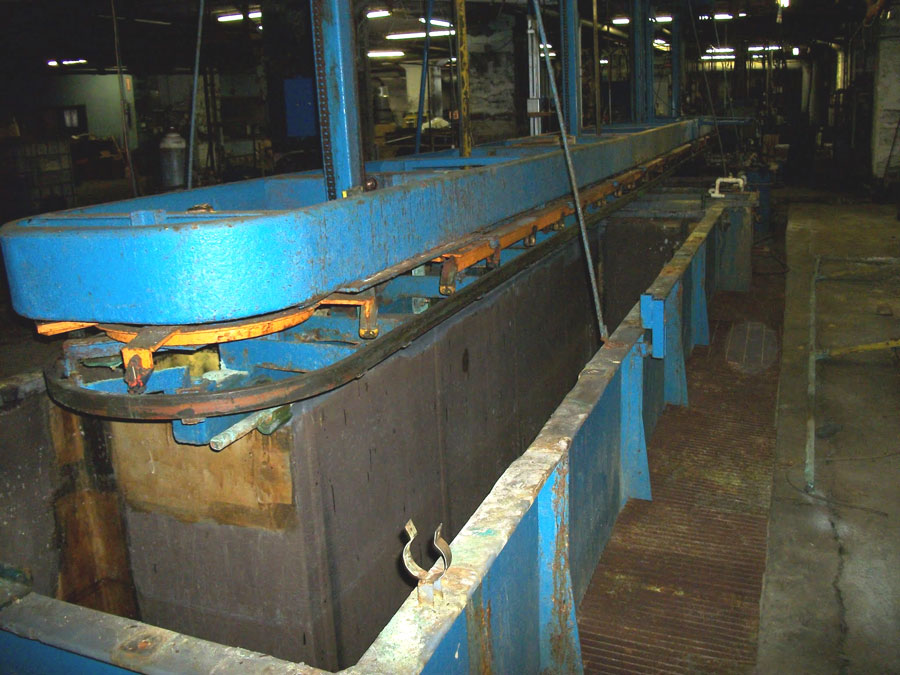

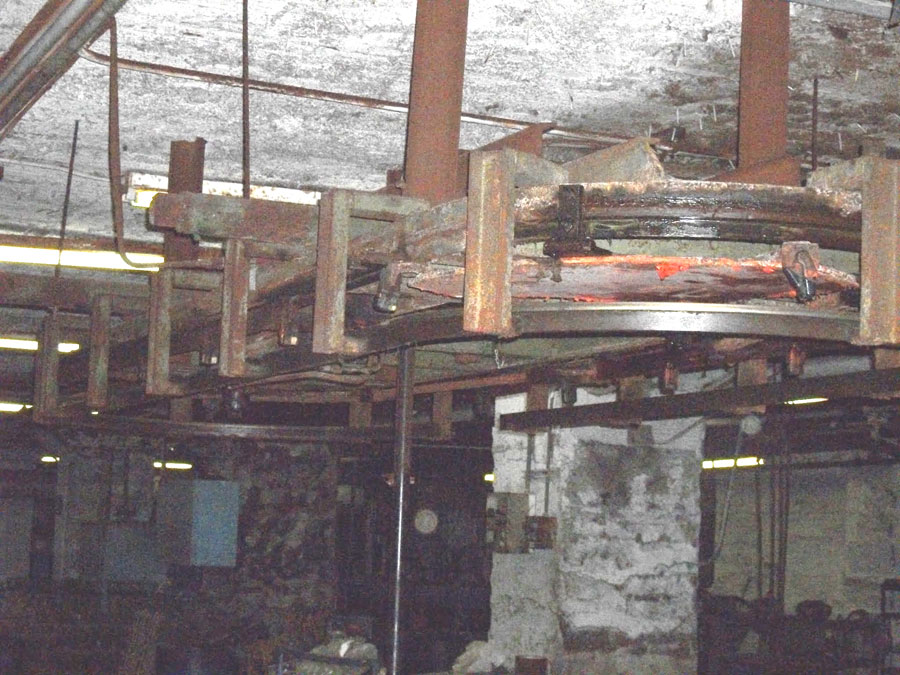

• 2 cycle master plating lines for sale.

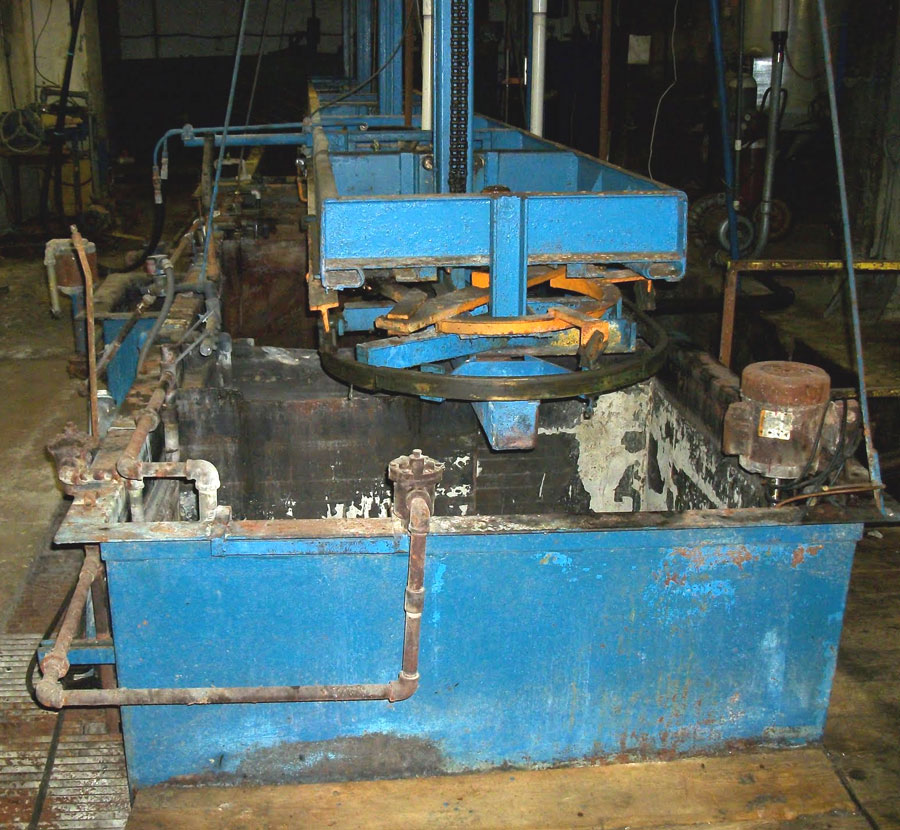

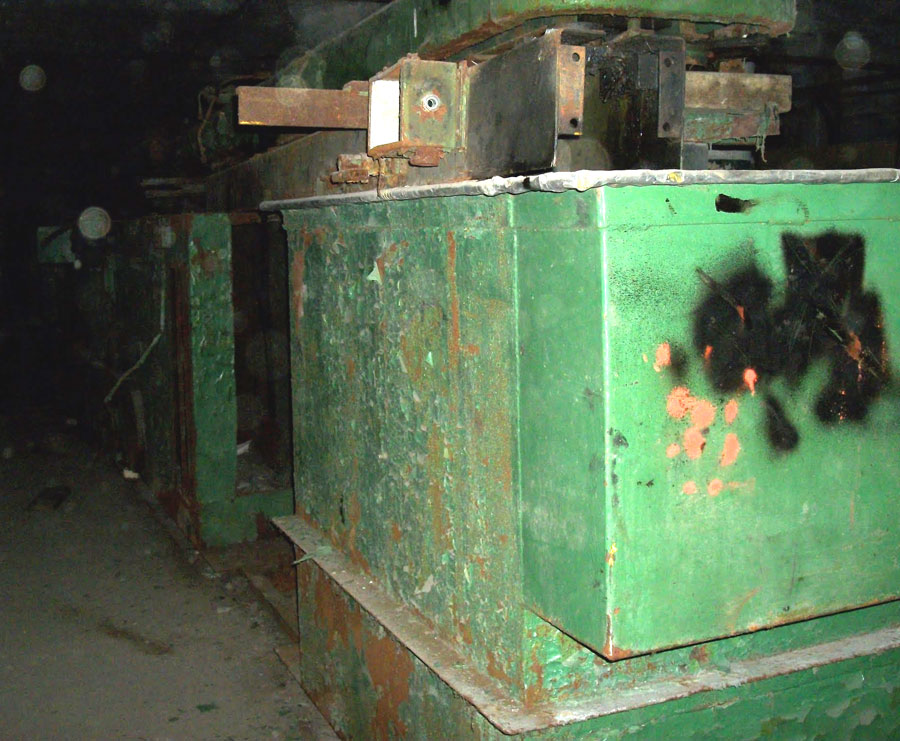

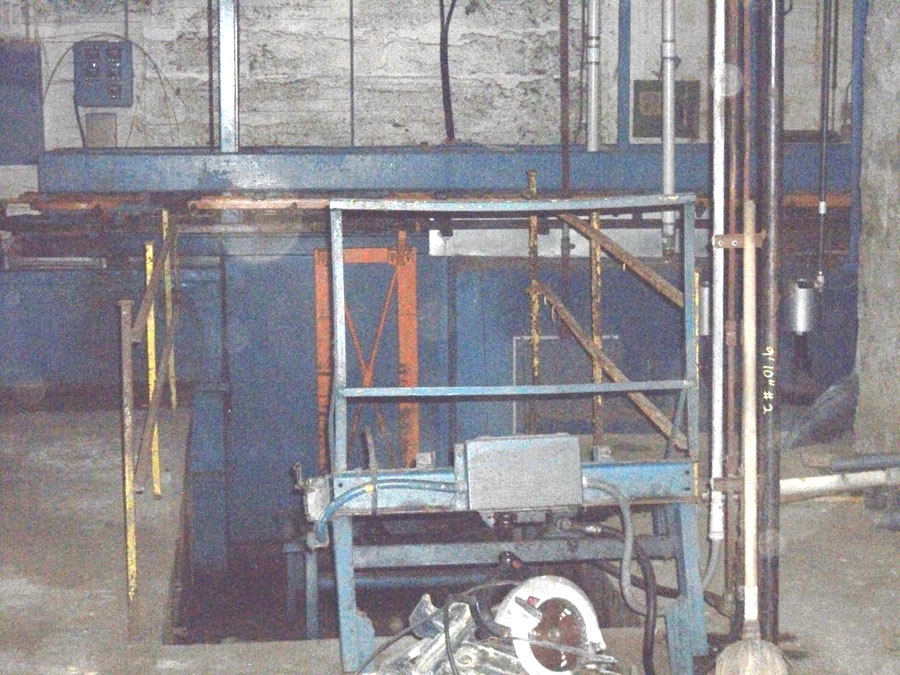

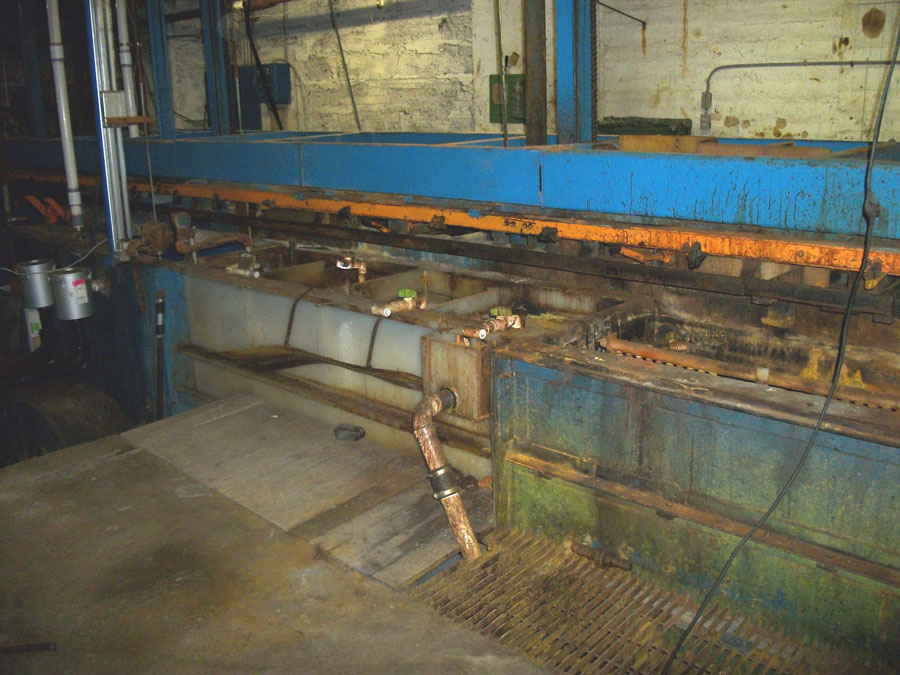

• 1 - operational line in pit was plating single Nickel Chrome over steel

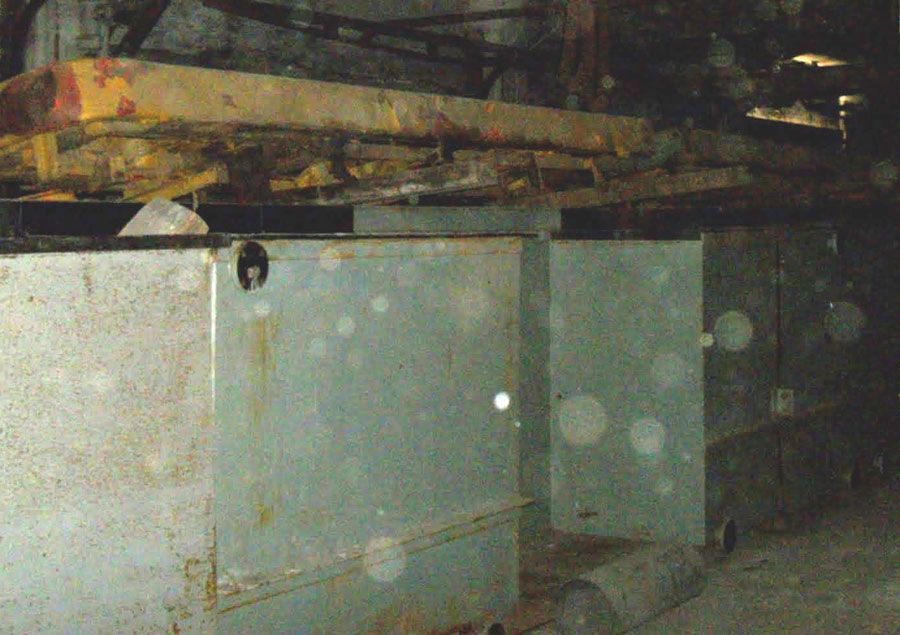

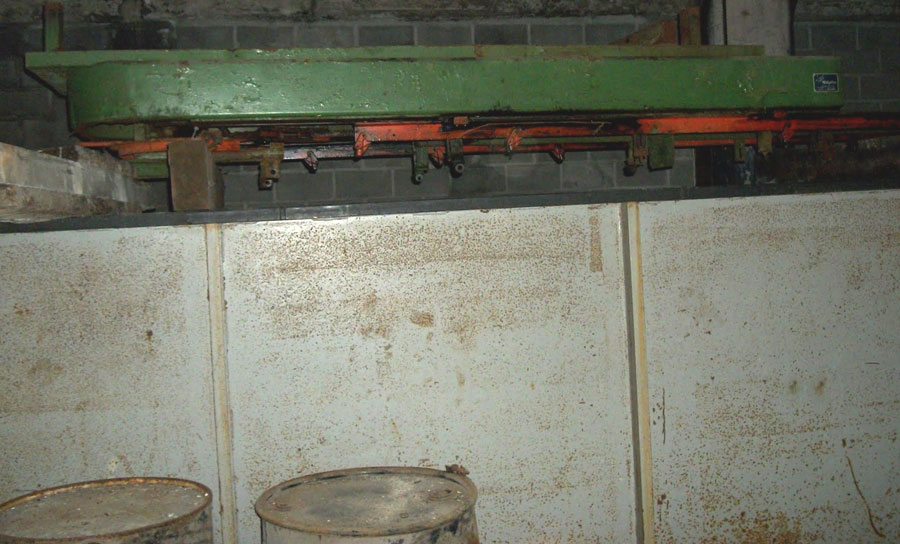

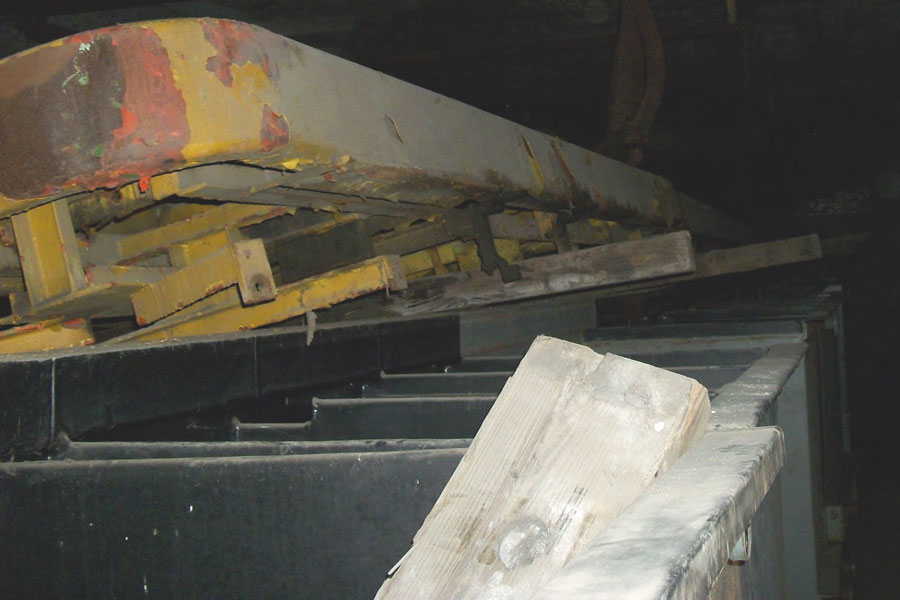

• 2 - non-running line is upstairs. It is a bigger line that was going to be set up for plating nickel-chrome over plastic.

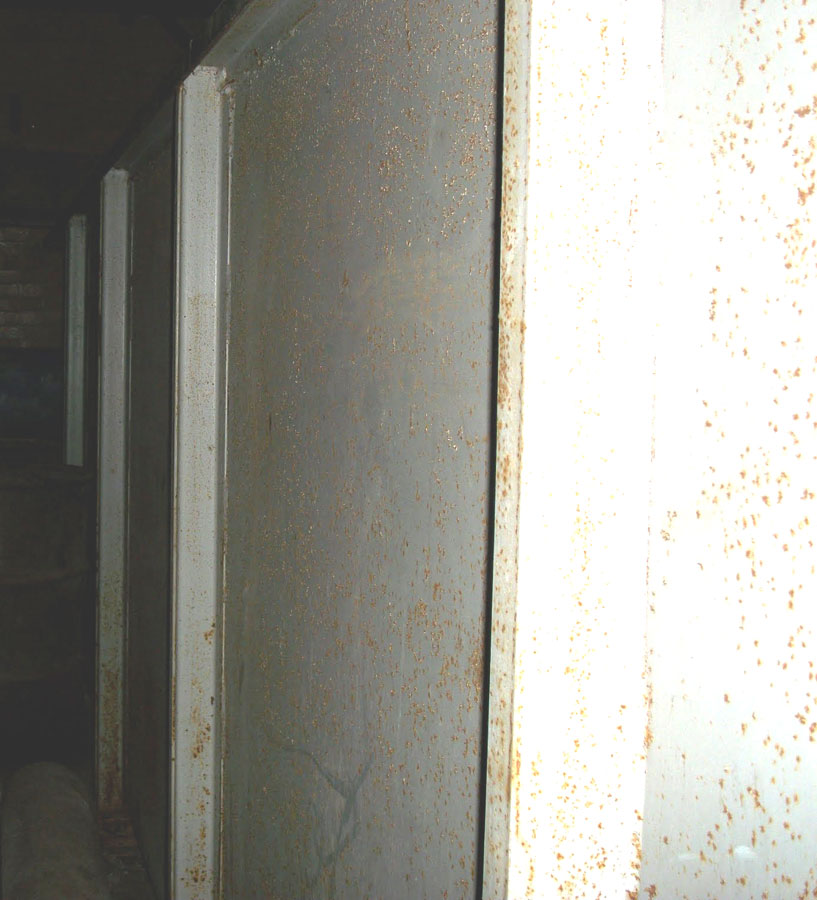

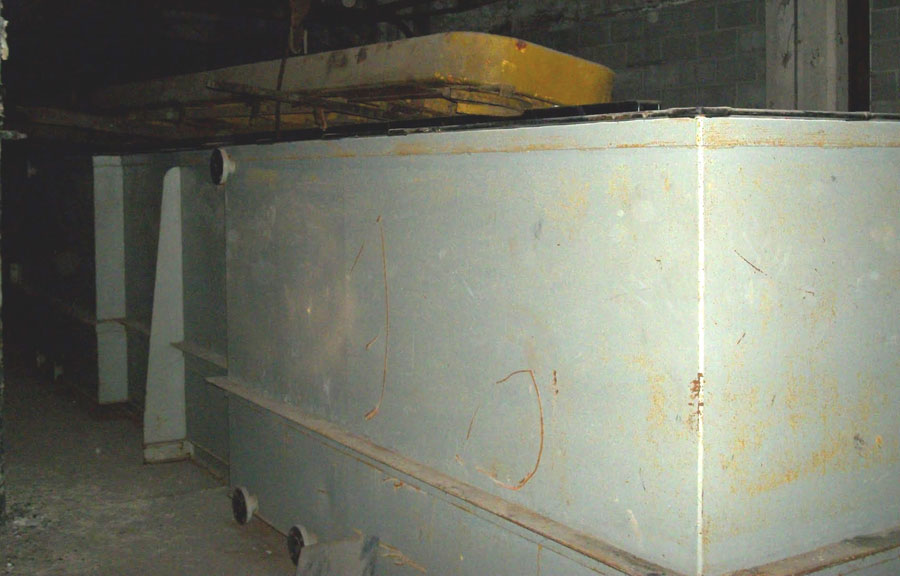

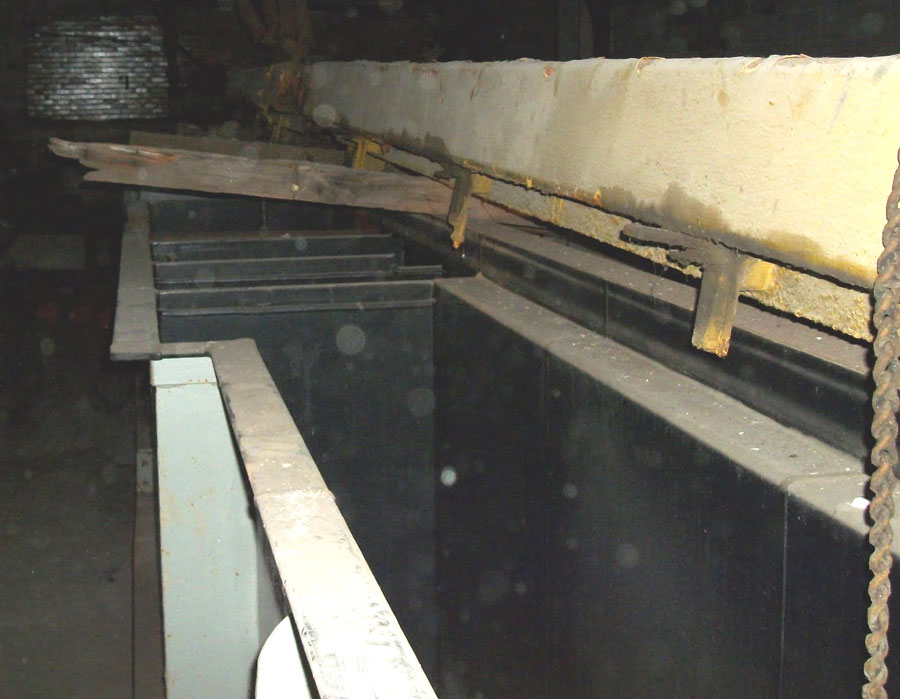

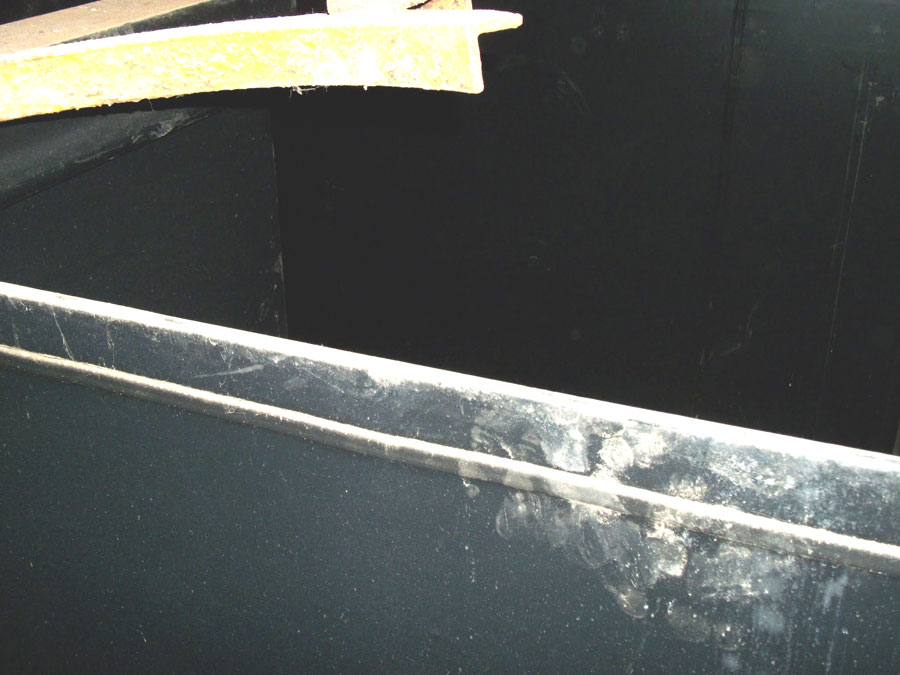

• Koroseal lined tanks never used.
